VECRUS™ LCP nonwoven fabric
What is VECRUS™ ?
VECRUS™ is a nonwoven fabric made from liquid crystal polymer (LCP) using Kuraray's unique technology.
It is particularly strong (tensile strength, abrasion resistance, and dimensional stability), and makes products smaller, lighter, longer-lasting, and faster communication.
Composed of ultrafine fibers, it is a low weight and excellent air permeability.
Compared to metal foil and film, it has shape-following properties.
Functions
Low weight
Low water absorption
Low dielectric properties
High heat resistance
Flexibility
Chemical resistance
Durability
Dimensional stability
Porous structure
Non-fluorine material
Markets
Electronics materials
Application example
Electromagnetic wave shielding

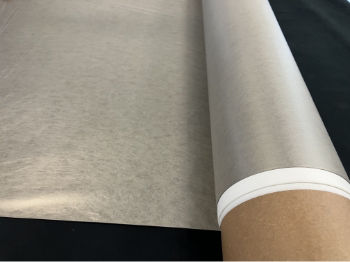

VECRUS™ with metal plating process provides excellent shielding properties, especially in the high-frequency range(>100MHz).
Low weight and high strength of VECRUS™ enable electronic devices to be made smaller and lighter.
Battery Separator
VECRUS™ is a nonwoven fabric made of microfibers that has porous structure and air permeability, so it does not inhibit the transportation of ions to and from the cathode and anode of the battery. Thus, it allows for higher capacity and output of batteries.
Heat resistant sheet
VECRUS™ has a melting point of over 573K（300℃）, making it suitable for applications requiring heat resistance.
It is also a non-fluorine material, so it can be used as an alternative to PTFE and other materials to comply with PFAS regulations.
Circuit board material
Since low dielectric properties derived from LCP prevent loss and attenuation of high-speed signals, VECRUS™ contributes to high-speed communication.
Also, low weight and high strength of VECRUS™ enable electronic devices to be made smaller and lighter.
Reinforcement material
Low weight and strength of VECRUS™ satisfy market demands for smaller, lighter and longer the life of products.
Since VECRUS™ absorbs very little water , it exhibits very stable electrical and physical performance even under humid conditions.
